Polycrystalline Diamond Compact

Product Description

Our in-house production capabilities mean we can fast-track production to help you overcome your challenges quickly. With a wide range of tungsten carbide and synthetic diamond grades along with extensive knowledge of the mining and construction industries –we develop bespoke solutions to help strike the perfect balance Huanghe’s PDC enhances drilling performance by providing drilling engineers with a drill bit that is reliable, durable, and performance driven.

In largescale mining and construction operations, unreliable machines and tools can have a significant impact on efficiency, increasing operational and maintenance costs.

With the right materials powering your machines and tools, you can achieve a step change in reliability and performance ensuring your equipment operates faster, for longer.Huanghe offers PDC that can help OEMs, toolmakers and their customers to enhance efficiency, performance and safety.

Characteristic

High wear resistance and impact toughness which improve speed and feeding. Tool life and efficiency are increased.

Application

Medium hardness and complex rock formations.

Parameters

Type	Diameter（mm）	Diamond Layer（mm）	Total Height（mm）	Diamond Chamfer（×45°）	Carbide Chamfer（×45°，Optional）	Wear Resistance（×104）	Impact Toughness（J）

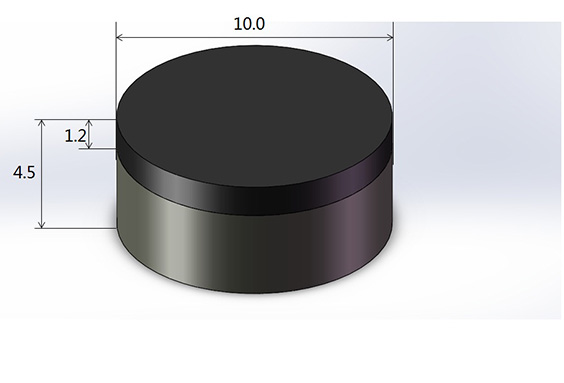

1004F	10.00	1.3-1.5	4.50	0.3-0.5	0.4-0.6	≥20	≥300
1304K	13.44	1.3-1.5	4.50	0.3-0.5	0.4-0.6	≥20	≥300
1204Y	12.50	1.4-1.6	4.50	0.3-0.5	0.4-0.6	≥28	≥400
1304Y	13.33	1.4-1.6	4.70	0.3-0.5	0.4-0.6	≥28	≥400
1304HY	13.33	1.0-1.2	4.50	0.3-0.5/No Chamfer	0.4-0.6	≥35	≥600
1308HY	13.44	1.3-1.5	8.00	0.3-0.5/No Chamfer	0.4-0.6	≥35	≥800
1308ZH	13.44	1.4-1.6	8.00	0.3-0.5	0.4-0.6	≥35	≥800
1304Q	13.33	1.3-1.5	4.5-4.8	No Chamfer	No Chamfer	≥20	≥800
1308QS	13.33	1.4-1.7	8.2-8.5	No Chamfer	No Chamfer	≥25	≥800
1304V	13.44	1.2-1.5	5.2-5.6	No Chamfer	No Chamfer	≥20	≥600
1308V	13.44	1.2-1.5	8.2-8.6	No Chamfer	No Chamfer	≥25	≥600
1308Z	13.44	1.6-2.0	8.00	0.3-0.5	0.4-0.6	≥20	≥300
1308ZS	13.33	1.5-2.0	8.00	0.3-0.5	0.4-0.6	≥28	≥400
1308SY	13.44	1.7-1.9	8.00	0.3-0.5	0.4-0.6	≥45	≥1200
1308YY	13.44	1.8-2.0	8.00	0.3-0.5	0.4-0.6	≥33	≥600
2508	25.00	1.5-1.8	8.00	0.3-0.5	0.4-0.6	≥30	≥600
3404	34.00	1.2-1.4	5.00	0.3-0.5	0.4-0.6	≥30	≥600
3406	34.00	1.2-1.4	6.00	0.3-0.5	0.4-0.6	≥30	≥600
1608	16.00	1.0-2.5	8.00	0.3-0.5	0.4-0.6	≥30	≥600
1313	13.00	1.0-2.5	13.00	0.3-0.5	0.4-0.6	≥30	≥600
